Bar Stations

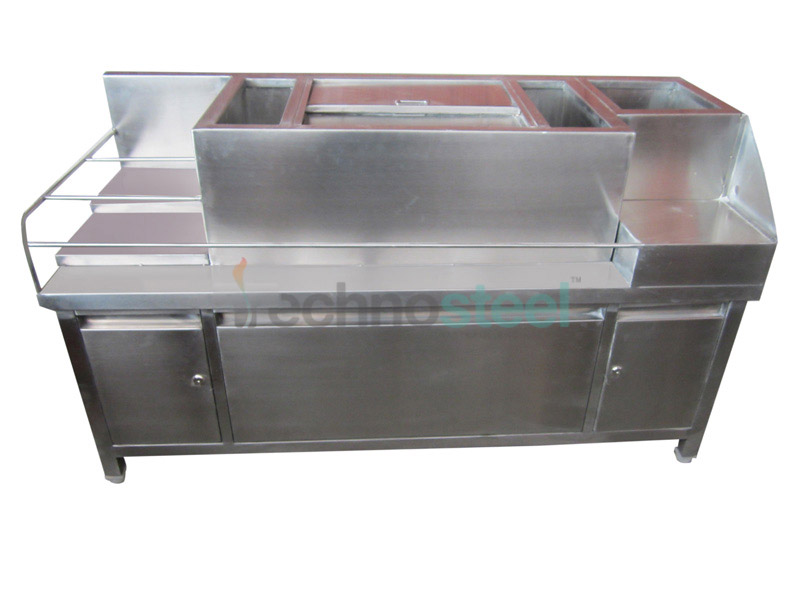

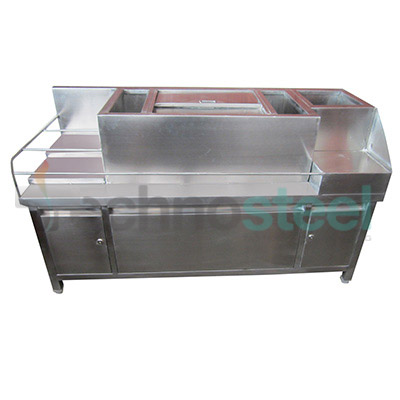

Cocktail Station

Stainless Steel 304 food grade quality construction.
Cocktail stations include glass racks, ice chests, speed rails (liquor rails), mix bottle wells, garnish tray, blender station with sink and faucet, liquor tier rack and waste chutes.
Cocktail station is widely used for quick service of cocktails and drinks in the bars.
Top is made of 16 SWG Stainless Steel duly matt polished with all resulting edges rounded with no bur or excess material left.
Undersides of all stainless steel tops for table counters, sinks dish & pot tables are mounted on sturdy S.S. angle.
The Under shelves are constructed of 18 swg S.S. sheeting uniformly matt polished.
Sink is Constructed of 16 swg, 304 grade stainless steel with radius corners, argon arc welded, smooth ground and uniformly finished, duly fitted with 1.1/2" Dia BSP drain coupling and / or 1 ½” BSP ball valve , and / or faucet as mentioned in individual input listing.
All legs/Uprights will be constructed of 1 1/2" Dia stainless steel tubes. All legs will be fitted with ferro 1000 nylon adjustable to approximately 1.1/2" bullet feet.
Made under the wise supervision of our highly qualified and skilled professionals using technologically advanced machinery.
Tested on various quality parameters to ensure the quality and consistency.

Sr. No.	Model	Standard Size
1	Cocktail Station	60” x 24” x 32” + 2”
	Also Available in custom built size

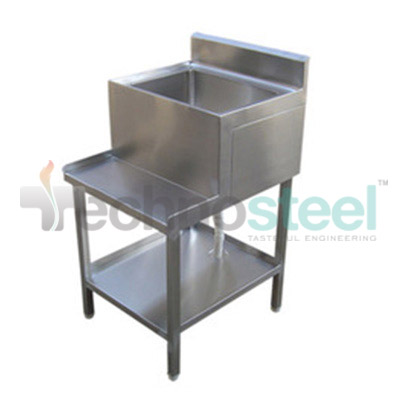

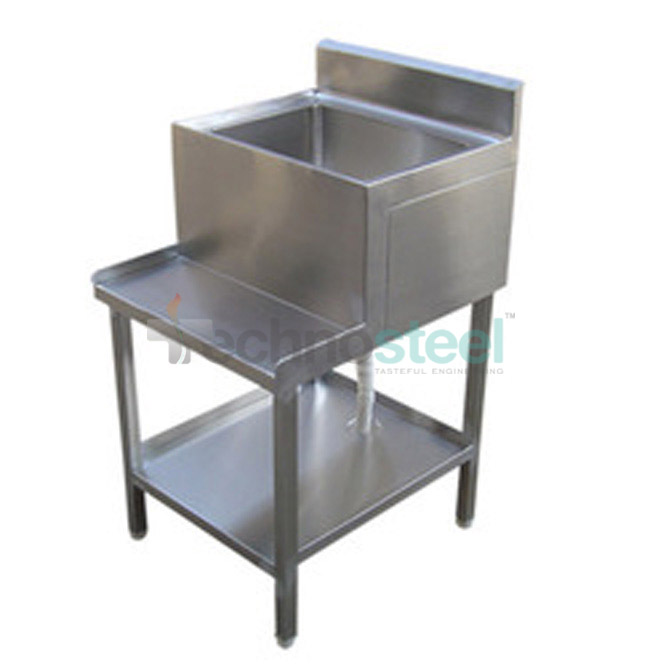

Blendar Station

Stainless Steel 304 food grade quality construction.
Blender stations with sink & platform for blender.
Top is made of 16 SWG Stainless Steel duly matt polished with all resulting edges rounded with no bur or excess material left.
Undersides of all stainless steel tops for table counters, sinks dish & pot tables are mounted on sturdy S.S. angle.
Constructed in 18 swg S.S. sheeting sides & rear uniformly matt polished and reinforced with sturdy S.S. square pipe frame.
Sink is Constructed of 16 swg, 304 grade stainless steel with radius corners, argon arc welded, smooth ground and uniformly finished, duly fitted with 1.1/2" Dia BSP drain coupling and/or 1 ½” BSP ball valve , and / or faucet as mentioned in individual input listing.
All legs/Uprights will be constructed of 1 1/2" Dia stainless steel tubes. All legs will be fitted with ferro 1000 nylon adjustable to approximately 1.1/2" bullet feet.
Made under the wise supervision of our highly qualified and skilled professionals using technologically advanced machinery.
Tested on various quality parameters to ensure the quality and consistency.

Sr. No.	Model	Standard Size
1	Blender Station	18” x 27” x 34”
	Also Available in custom built size

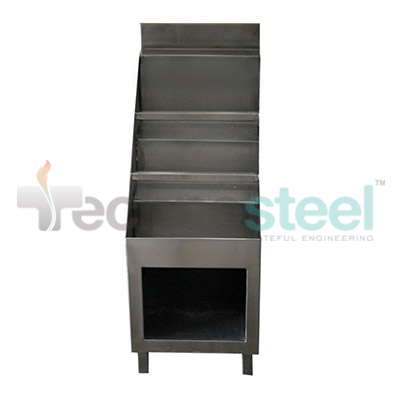

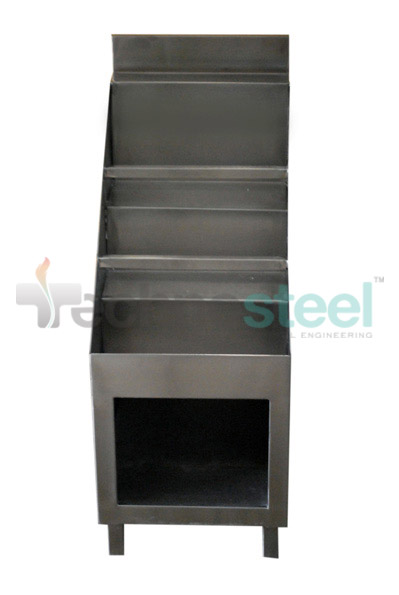

Liquor Station

Stainless Steel 304 food grade quality construction.
Liquor stations with tier rack.
Constructed in 18 swg S.S. sheeting uniformly matt polished with 120 grit and reinforced with sturdy S.S. square pipe frame.
All legs/Uprights will be constructed of 1 1/2" Dia stainless steel tubes. All legs will be fitted with ferro 1000 nylon adjustable to approximately 1.1/2" bullet feet.
Made under the wise supervision of our highly qualified and skilled professionals using technologically advanced machinery.
Tested on various quality parameters to ensure the quality and consistency.

Sr. No.	Model	Standard Size
1	Liquor Station	18” x 27” x 34”
	Also Available in custom built size

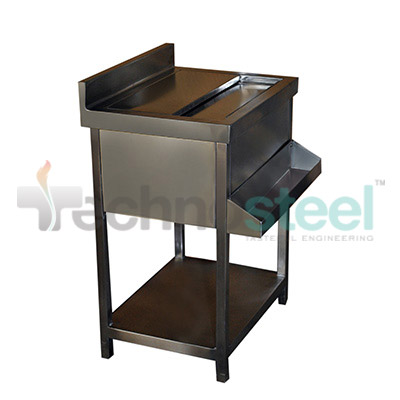

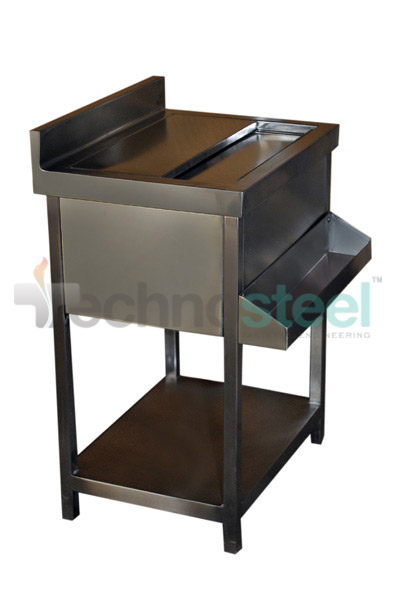

Ice Bin

Stainless Steel 304 food grade quality construction.
Top is made of 16 SWG Stainless Steel duly matt polished with all resulting edges rounded with no bur or excess material left.
Undersides of all stainless steel tops for table counters, sinks dish & pot tables are mounted on sturdy S.S. angle.
The Under shelves are constructed of 18 swg S.S. sheeting uniformly matt polished.
Ice Bin is constructed of 18 swg, 304 quality stainless steel with radius corners, argon arc welded, smooth ground and uniformly finished, duly fitted with 1.1/2" Dia BSP drain coupling and / or 1 ½” BSP ball valve. Suitably insulated with 1" thick high quality mineral glass wool.
All legs/Uprights are constructed of 1 1/2" Dia stainless steel tubes spaced not more than six feet on centre. All legs will be fitted with ferro 1000 nylon adjustable to approximately 1.1/2" bullet feet.
Made under the wise supervision of our highly qualified and skilled professionals using technologically advanced machinery.
Tested on various quality parameters to ensure the quality and consistency.

Sr. No.	Model	Standard Size
1	Ice Bin	30” x 24” x 34” + 6”
	Also Available in custom built size

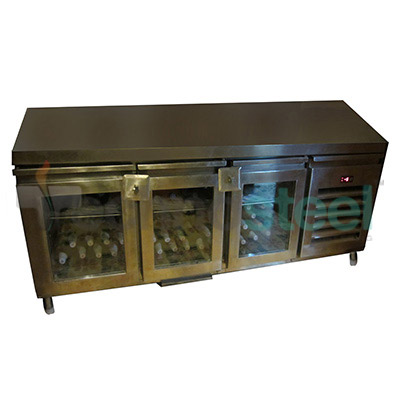

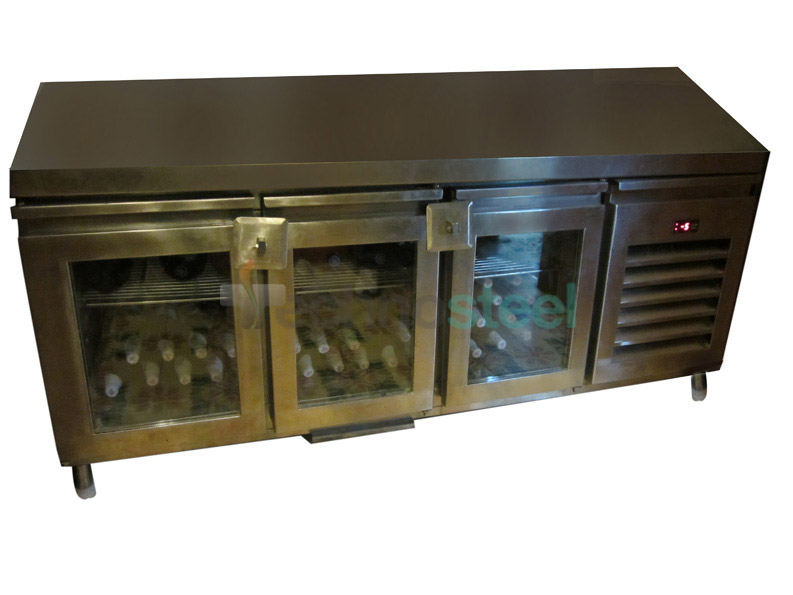

Back Bar Cooler

Interiors of the units	:	22 swg. Stainless steel ; 304 grade.
Exterior of the units	:	20 swg. Stainless steel ; 304 grade.
Doors	:	19 swg. Stainless steel frame work vacuum glass, Self closing, Spring loaded doors with magnetic gasket.
Insulation	:	High density PUF insulation.
Stainless Steel Racks	:	2 racks behind each door made of stainless steel rods. Sides & two cross supports 6 mm while shelf of 4 mm stainless steel.
Refrigeration System	:	Emerson Copeland condensing unit along with Hermetically sealed compressor & fan motor. Refrigerators shall be Static / forced Draft Cooling Unit, Deep Freezers shall be static cooling unit.
Digital Temperature Indicator	:	Special non-clogging electronic indicator with Built in power supply.
Legs	:	6” long ; 1 ½” diameter stainless steel pipes with Nylon bullet feet.

Sr. No.	Model	Standard Size
1	Back Bar Cooler	72” x 24”x 34”
2	Back Bar Cooler	60” x 24”x 34”
3	Back Bar Cooler	48” x 24”x 34”
	Also Available in custom built size

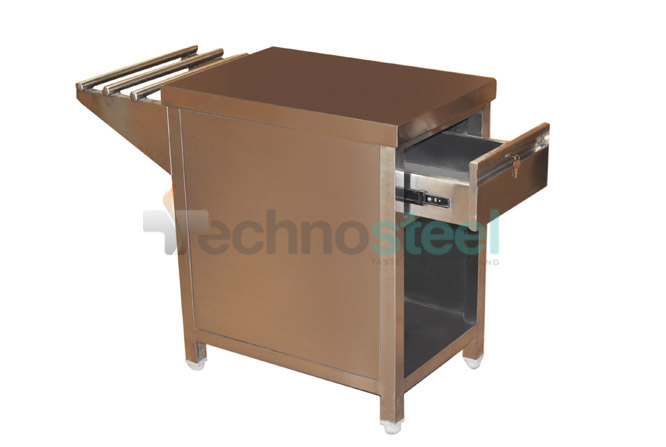

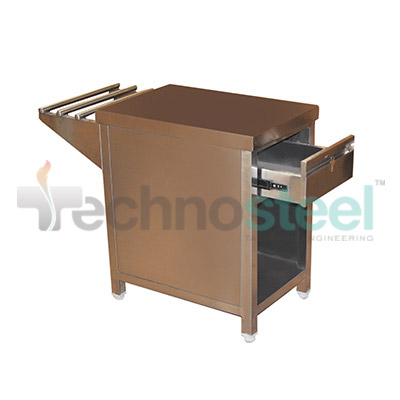

Cash Counter

Stainless Steel 304 Food Grade quality steel construction.
High utility product ensures cash storage with lockable drawer.
Heavy gauge, perfectly sound-deadened for low noise level.
Top is made of 16 SWG Stainless Steel duly matt polished with all resulting edges rounded with no bur or excess material left.
Undersides of all stainless steel tops for table counters, sinks dish & pot tables will be mounted on sturdy S.S. angle.
The Under shelves will be constructed of 18 swg S.S.sheeting uniformly matt polished.
All legs/Uprights will be constructed of 1 1/2" Dia stainless steel tubes spaced not more than six feet on centre. All legs will be fitted with ferro 1000 nylon adjustable to approximately 1.1/2" bullet feet.
Made under the wise supervision of our highly qualified and skilled professionals using technologically advanced machinery.
Tested on various quality parameters to ensure the quality and consistency.

Sr. No.	Model	Standard Size
1	Cash Counter	36” x 24” x 34”
2	Cash Counter	24” x 24” x 34”
	Also Available in custom built size
